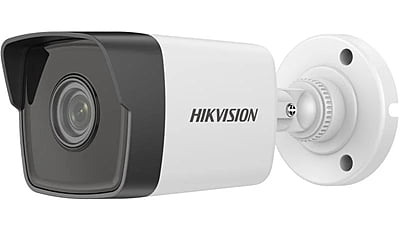

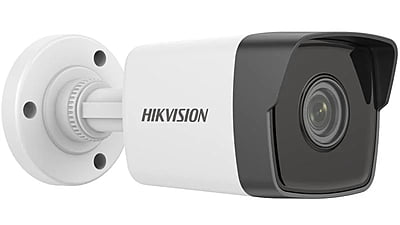

2 MP Outdoor Fixed Bullet Network Camera with Build-in Mic
- High quality imaging with 2 MP resolution
- Efficient H.265+ compression technology
- Clear imaging even with strong back lighting due to DWDR technology
- Up to 128 GB SD card slot for storage
- Wi-Fi connection with Hik-Connect directly is not possible
- Water and dust resistant (IP66)
- Smart Features
- Alarm TriggerMotion detection, network disconnected, IP address conflict, illegal login, HDD full, HDD error
- Camera
- Image Sensor1/2.7" Progressive Scan CMOS
- Min. IlluminationColor: 0.028 Lux @ (F2.0, AGC ON)
- Shutter Speed1/3 s to 1/100,000 s
- Slow ShutterYes
- Angle AdjustmentPan: 0° to 360°, tilt: -90° to 90°, rotate: 0° to 90°
- WDRDWDR
- Day & NightIR Cut Filter

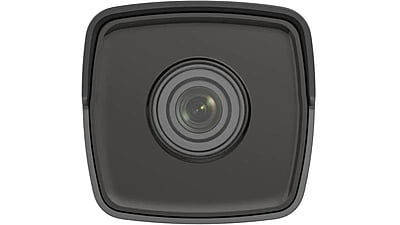

- Lens
- ApertureF2.0
- FocusFixed
- FOV
2.8 mm, horizontal FOV: 114.5°, vertical FOV: 62°, diagonal FOV: 135.5°
4 mm, horizontal FOV: 86°, vertical FOV: 46.5°, diagonal FOV: 102.5°
- Lens MountM12
- Focal length2.8/4 mm
- Network
- Network StorageSupport micro SD/SDHC/SDXC card (max. 256 GB), local storage and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
- Alarm TriggerMotion detection, illegal login
- ProtocolsTCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, RTP, RTSP, NTP, UPnP, IGMP, IPv6, UDP, QoS, Bonjour
- APIISAPI
- Simultaneous Live ViewUp to 6 channels
- User/Host
Up to 32 users
3 levels: Administrator, Operator and User
- Client
Wired network: Hik-Connect, iVMS-4200
Wi-Fi: iVMS-4200
*Wi-Fi connection with Hik-Connect directly is not possible.
- Web Browser
Plug-in required live view: IE8, IE9, IE10, IE11
Local service: Chrome 57.0+, Firefox 52.0+
- General FunctionAnti-flicker, heartbeat, mirror, password protection, password reset via e-mail
- Firmware VersionV5.5.101
- Video
- Max. Resolution1920 × 1080
- Audio
- Environment Noise FilteringYes
- Audio Sampling Rate8 kHz/16 kHz
- Interface
- Reset ButtonYes
- On-board storageBuilt-in Micro SD/SDHC/SDXC slot, up to 128 GB
- Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
- Audio1 Built-in mic, mono sound
- Image
- Max. Resolution1920 × 1080
- Main Stream
50Hz: 25 fps (1920 × 1080, 1280 × 720)
60Hz: 30 fps (1920 × 1080, 1280 × 720)
- Sub-Stream
50Hz: 25 fps (640 × 360)
60Hz: 30 fps (640 × 360)
- Image EnhancementBLC, HLC, 3D DNR
- Day/Night SwitchDay, night, auto, scheduled
- Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
- General
- Operating Conditions-30 °C to +60 °C (-22°F to +140 °F), humidity 95% or less (non-condensing)
- Power supply12 VDC ± 25%, Ø5.5 mm coaxial power plug
- Power Consumption and Current12 VDC, 0.4 A, max. 5 W
- MaterialFront cover: metal, back cover: plastic
- Dimensions
Camera: 177.6 mm × 67.8 mm × 66.2 mm (7" × 2.7\" × 2.6\")
With package: 264 mm × 129 mm × 120 mm (10.4 × 5.1\" × 4.7\")"
- Weight
Camera: approx. 270 g (0.6 lb.)
With package: approx. 470 g (1 lb.)
- Approval
- ProtectionIngress protection: IP66 (IEC 60529-2013)
- Compression Standard
- Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264
- H.264+Main stream supports
- H.265+Main stream supports
- H.264 TypeBaseline Profile/Main Profile
- H.265 TypeBaseline Profile
- Video Bit Rate32 Kbps to 8 Mbps
- Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
- Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32 to 160Kbps(MP2L2)
- IR
- IR RangeUp to 30 m
- Wavelength850 nm

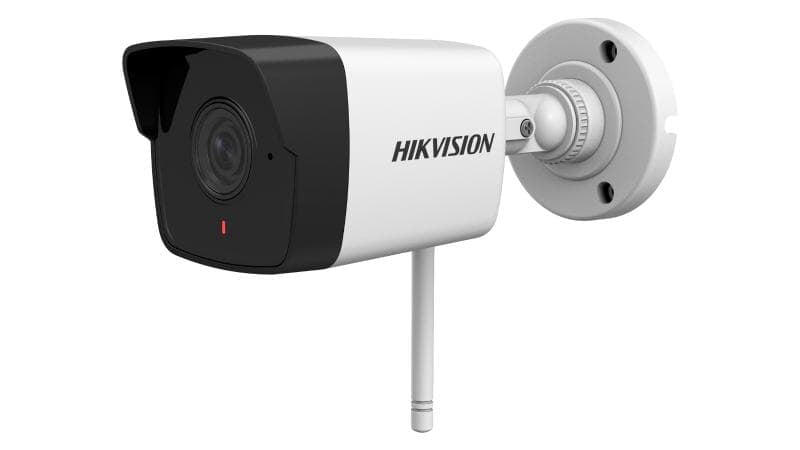

- Wi-Fi (-W)
- Wireless StandardsIEEE 802.11b/g/n
- Frequency Range2.4 GHz to 2.4835 GHz
- Transfer Rates
11b: 11 Mbps
11g: 54 Mbps
11n: up to 150 Mbps
- Security64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
- Channel Bandwidth20 MHz/40 MHz
- Wireless RangeUp to 80 m (The performance varies based on actual environment.)
- Protocols
802.11b: CCK, DQPSK, DBPSK
802.11g/n: 64-QAM, 16-QAM, QPSK, BPSK
